Hervorheben:
Outdoor Waterproof Led Screen
, Outdoor LED Display for Advertising
, Outdoor LED Screen

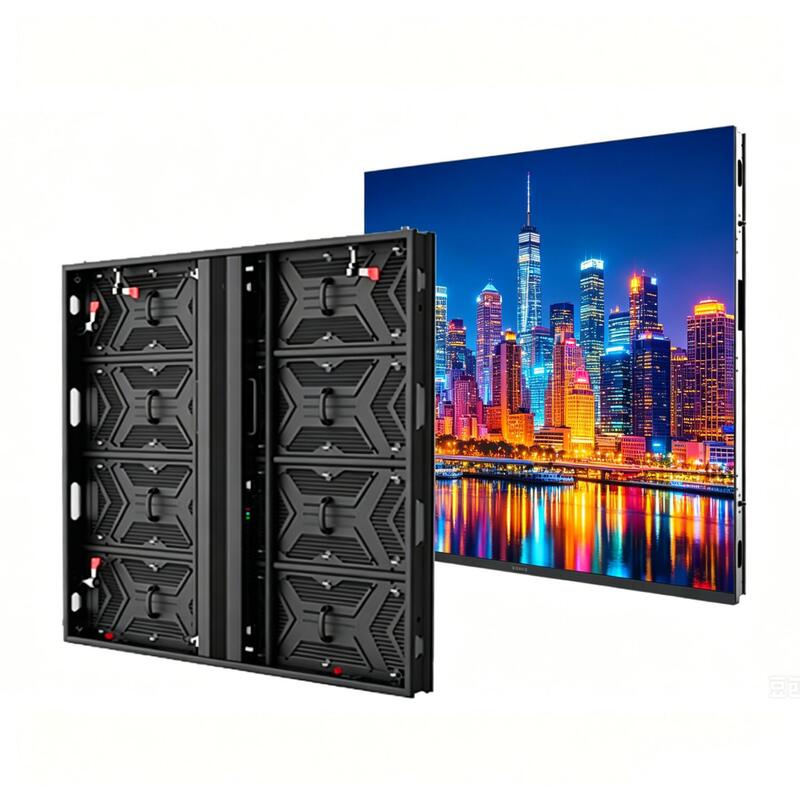

Outdoor LED Screens
Outdoor LED screens are high-brightness digital displays engineered to deliver clear, vibrant visuals in any lighting condition. Ideal for advertising, public events, stadiums, and live broadcasts, outdoor Advertising LED Display offer unmatched durability, visibility, and scalability. Compared to traditional billboards outdoor LED displays excel under direct sunlight and in harsh weather conditions.
Outdoor aluminum LED display Paramenters:
| HSCXLED-Outdoor LED display --Outdoor aluminum profile enclosure LED screen |
| Model |
P3.91 |
P4.81 |
P6.25 |
P5.71 |
P6.67 |
P8 |
P10 |
| Pixel pitch |
3.91mm |
4.81mm |
6.25mm |
5.71mm |
6.67mm |
8mm |
10mm |
| LED configuration |
SMD1921 |
SMD1921 |
SMD1921 |
SMD 2727 |
SMD 2727 |
SMD 2727 |
SMD 3535 |
| Module size |
500*250mm |
480*320mm |
| Scan mode |
1/16 scan |
1/13 scan |
1/5 scan |
1/7scan |
1/6 scan |
1/5 scan |
1/2 scan |
| Pixel matrix per Module |
128*64 dots |
104*52 dots |
80*40 dots |
84*56 dots |
72*48 dots |
60*40 dots |
48*32 dots |
| Pixel density(dots/sqm) |
65,536 |
43,264 |
25,600 |
30,670 |
22,477 |
15,625 |
10,000 |
| Screen size |
1000*1000mm |
960*960mm |
| Refresh rate |
≥3840HZ |
| Box material |
profile aluminum |
| Brightness |
4500nit |
4500nit |
6000nit |
5500-10000nit |
| Ingress Protection |
IP67 |
| Weight |
≤28kg/m² |
| Viewing Angle |
H 160° / V 160° |
| AC Input Voltage |
AC 110V/220V±10%,50Hz/60Hz |
| Gray Level |
14bit |
| Working Temperature |
-20 -50(℃) |
| Maximum power |
600W/m² |
| average power |
200W/m² |
| Operating Humidity |
10%~95% RH |
| Video Format |
Support RM,FLV,AVI,MP4 and other mainstream video formats |
| Picture Format |
Support JPG,PNG,and other image formats |
| Life Time |
≥ 100000(Hours) |
Perfect Dimension Of Outdoor Screen
1: 1000x1000mm / 960x960mm cabinet design, aluminum
2: Magnesium alloy material, the lightest, only 23kg
3: High precision, seamless connection
4: Quick and easy installation, saving labor
5: Good heat dissipation performance, good protection for modules and circuits
6: Front and rear maintenance functions. Fully waterproof IP68
Wide Viewing Angle
The vertical and horizontal viewing angles are up to 140 degrees, providing a wide viewing angle. Ultra-wide viewing angle gives you the largest screen viewing area. Outdoor LED Screen provides you with clear and natural images in all directions.
Outdoor LED Screen Front Maintenance
The power supply, hub card, and receiving card are all integrated within a modular system enclosure, guaranteeing safeguarding against water infiltration. The outdoor led screen enclosure is designed to be removable, facilitating ease of replacement and maintenance for enhanced operational efficiency.
500*250mm/480*320mm LED Module Panel
HSCXLED-Outdoor aluminum LED screen/outdoor front desk service LED display screen adopts 500*250mm/480*320mm LED module panel. Humanized handle design, module lock, waterproof rubber and high-quality LED module panel ensure excellent display quality.
Standard 1000x1000mm/960x960mm Outdoor Screen Cabinet
The ultra-thin and lightweight design of outdoor LED displays significantly enhances their usability in various applications, particularly for outdoor advertising screens. These features facilitate convenient installation methods and improve overall performance, making them ideal for dynamic advertising environments.
Perfect Cabinet Design
The Outdoor aluminum LED screen perfect cabinet with simple and humanized design including signal connector, installation hole, up/down fast lock, left/right fast lock, power/signal connector, module handle, position pin, signal indicator, and cabinet back cover.
Quick Lock Installation Function
Quick lock design, one person can easily complete installation.
HUB Connection and Hot-Swappable Features
Outdoor aluminum LED screen designed for enhanced functionality and ease of maintenance, outdoor screens featuring hub connectivity and hot – swappable capabilities represent the latest in cost – effective outdoor solutions. These innovations ensure that displays remain operational and efficient, making outdoor aluminum LED screens ideal for a variety of dynamic environments.
Energy-Saving 30-60% Outdoor Screen
Outdoor energy – saving LED displays are designed to provide high – quality visual output while minimizing energy consumption. The outdoor aluminum LED screens are ideal for a variety of applications, including advertising, events, and public information systems, combining efficiency with performance.
High Grayscale in LED Displays
High grayscale capability in LED outdoor displays refers to the ability to render a wide range of shades between black and white, enhancing the overall quality and realism of the images displayed. This feature is particularly important for applications that require detailed visual performance, such as photography, video production, and artistic installations.
IP68/IP65 Protection Grade Double-sided
LED screens in outdoor scenes face more challenges than indoor scenes, such as dust and water damage caused by long-term work. In order to make the LED screen work safely and stably in outdoor scenes, HSCXLED-outdoor led screens use advanced protection methods that can withstand heavy rain and strong winds for a long time. The IP68 double-sided design can isolate electronic components from moisture and dust, so the screen is more reliable.
Quick and Perfect Splicing Function for LED Outdoor Screens
The fast, flawless splicing feature in outdoor screens is specifically designed to create a seamless viewing experience. This functionality ensures that multiple panels connect perfectly, providing a cohesive visual surface that enhances the overall display quality.
90° Right Angle Splicing Outdoor Screen Technology
Outdoor aluminum LED screen supports 90° seamless right-angle splicing, easily creating a three-dimensional corner structure and enhancing visual impact.
90° Arc Splicing Outdoor Screen Technology
Outdoor aluminum LED screen- LED advertising screen supports 90° curved tiling, creating smooth three-dimensional shapes and achieving creative 3D display effects. High-quality screens continue to help new technologies come true and shine for the public.
Power Con. and Data Con. Plug It and Play It
The cabinet design with lock and aviation plug can be easily and quickly assembled in a short time without tools, and can be fixedly installed or hung on the truss by the boom.
Various Installation Methods For LED Outdoor Screens
LED outdoor Screens offer a range of installation methods to accommodate different venues and event requirements. Selecting the appropriate installation method is crucial for maximizing visual impact and ensuring stability and safety.
